For pressure detection where pressure measurement is not always required! You can carry it anywhere!
SUS-spec
-
You can measure circuit pressure up to 35MPa even during pressurization.
-
If you install a special nipple to a circuit where you need to measure, you can check pressure whenever required.
-
Cost reduction, by replacing a pressure gauge in use with a pressure tester.
-
You can read pressure at all positions with a pressure hose.
-
Suitable for venting air from a circuit and sampling oil.
-
Easy diagnosis and maintenance of a hydraulic circuit.
Specifications
Example of use
-
【 Construction 】 Concrete pumping car, shovel car, bulldozer
-
【 Machine 】 Large machine, special-purpose machine, hydraulic press
-
【 Iron and steel 】 Iron and steel making plants
-
【 Injection 】 Accumulator injection circuits, clamping circuits
-
【 Vehicle 】 Large special vehicles
Example of combination
Precautions for use
-
Since the pressure tester hose is based on nylon resin, be careful not to "bend" or "twist" it.
-
Use the pressure tester only for temporary pressure checks.
If circuit pressure is constantly applied, be sure to use ▷ NH hose (SUS-spec) with piping fittings.Special nipple(SUS)
This is a check valve type special nipple. If you tighten a metal fitting on a high pressure hose side, a check valve will open.
*Please refer to the drawing for detailed dimensions
High pressure hose(SUS)
This is a high pressure hose to connect between a special nipple and a glycerin pressure gauge.
You can use it when a pressure detecting position is far.
*Please refer to the drawing for detailed dimensions
Pressure gauge adaptor(SUS)
This is an adaptor to connect a high pressure hose to a glycerin pressure gauge.
Select the best adaptor in conformance to the screw diameter of a glycerin pressure gauge to be used.
If you use this pressure gauge adaptor, you can easily connect or disconnect a glycerin pressure
gauge and a high pressure hose by hand without using a wrench.
Be sure to use an adaptor for each pressure gauge.
*Please refer to the drawing for detailed dimensions
Storage kit (plastic case)
Suitable for accommodating pressure tester pieces in a compact space, to be used as a portable tool.
This case can accommodate up to 4 glycerin pressure gauges, 7 special nipples, 7 pressure gauge adaptors and 3 high pressure hoses.

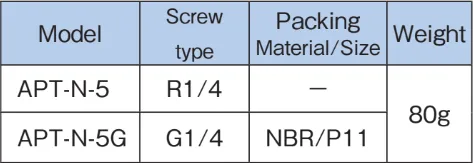

| APT-N-5 |
APT-G-5 |
| APT-N-5G |
APT-G-6 |
| APT-05-NS |
|
| APT-10-NS |
|
| APT-20-NS |
OSG-AT-G1/4-60X 4MPa, 6MPa |
| APT-30-NS |
OSG-AT-G1/4-60X 10MPa, 16MPa, 25MPa
|
